Beginner Help: Deploying an API Service with Pickle Model from Jupyter Notebook in Dataiku

Velichka
Velichka Registered Posts: 3 ✭✭

Hello Dear Community,

I am a complete beginner in Dataiku and have created a Jupyter Notebook as a mini test model. I used Pickle to save the model and vectorizer into a managed folder named "Models". My goal is to make this model available as an API service, but I’m struggling with the process and would greatly appreciate step-by-step instructions to achieve this.

Below is the code I have written in my notebook:

API Designer

Settings: Function name → predict_cluster, code env →inherit project def (DSS builtin env)

Code:

import pickle
import dataiku
import dataikuapi


client = dataiku.api_client()
project_key = "EMPF_SYS"
project = client.get_project(project_key)
folder_name = "Models"

managed_folder = dataiku.Folder(folder_name)


with managed_folder.get_download_stream("vectorizer.pkl") as stream:
vectorizer, kmeans = pickle.load(stream)

# Modell und Vektorisierer aus dem Managed Folder laden
#folder = Folder("Models")
#with folder.get_download_stream("vectorizer.pkl") as f:
# vectorizer, kmeans = pickle.load(f)

# Endpunkt-Handler
def predict_cluster(request):

try:
data = request.json
input_text = data.get("text", "")

if not input_text:
return {"error": "No text provided"}, 400

vectorized_text = vectorizer.transform([input_text])

cluster = kmeans.predict(vectorized_text)[0]

# Ergebnis zurückgeben
return {"cluster": int(cluster)}, 200
except Exception as e:
return {"error": str(e)}, 500 Test Query {
"text": "Test"
}

Security: Authorization method: Public

When I test the API query, I encounter the following error:

Dev server deployment

FAILED

Failed to initiate function server : <class 'Exception'> : Default project key is not specified (no DKU_CURRENT_PROJECT_KEY in env)

I would be incredibly grateful for any hints, guidance, or resources that could help me resolve this issue, especially regarding deploying the model stored in the managed folder and exposing it as an API service.

Thank you in advance for your support! 🙏

Best regards,
Veli

Operating system used: Windows 11

Answers

  • Turribeach
    Turribeach Dataiku DSS Core Designer, Neuron, Dataiku DSS Adv Designer, Registered, Neuron 2023 Posts: 2,248 Neuron
    edited January 22

    An API service running in the API node and doesn't have a project context. In fact the API node doesn't even have access to the project data. I am guessing that you are only testing your API service in the Designer Node which comes with the API Note embedded into it which is why you haven't seen the URL error you should see with the above code if you try it from a deployed API service in the API node.

    So there are two ways to do what you want:

    You can use a Python Prediction endpoint (rather than Python function)

    Exposing a Python prediction model — Dataiku DSS 13 documentation

    When you package your service, the contents of the folder is bundled with the package, and your custom code receives the path to the managed folder content.

    Or you continue using a Python Function:

    https://doc.dataiku.com/dss/latest/apinode/endpoint-python-function.html

    When you package your service, the contents of the folders are bundled with the package, and your custom code receives the paths to the managed folder contents.

    Full API node documentation here:

    API Node & API Deployer: Real-time APIs — Dataiku DSS 13 documentation

  • Velichka
    Velichka Registered Posts: 3 ✭✭

    Hello Turribeach,

    Thank you for your quick response. I’ve already gone through the documentation and the pages you referenced, but I’m still struggling to make progress.

    You mentioned that I should package my service—could you provide more details on how to do that? I understand that I would need to use a Python Function since the Recommender plugin doesn’t work with Oracle. However, before I dive into that, I need to get the test model up and running.

    Do you, by any chance, have any code examples or instructions from a project where you’ve successfully implemented the second option (Python Function) in the Designer Node? That would be incredibly helpful and would save me a lot of trial and error.

    Looking forward to your guidance! :)

  • Turribeach
    Turribeach Dataiku DSS Core Designer, Neuron, Dataiku DSS Adv Designer, Registered, Neuron 2023 Posts: 2,248 Neuron
    edited January 23

    Hi, the Exposing Python function link I provided gives you sample code of how to import a pickle model from a Dataiku managed folder. You need to use this code not what you currently have. Furthermore you can not test this code in a Jupyter Notebook, this code will only work on the API node. So you must deploy this API service to an API node to test it. The API node documentation provides examples on how to test API services, please review these.

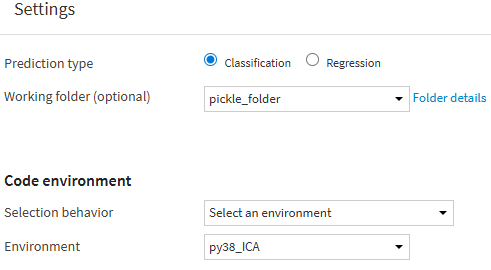

    The one thing the documentation seems to be missing is how you add the managed folder to the API service so that it's packaged by the service as it is deployed to the API node. This can be done in Settings section of the API Endpoint tab:

    So perform these changes, deploy your API service to the API node and then test it. If it is failing please post both the API function code and the logs showing the error in the API node.

  • Velichka
    Velichka Registered Posts: 3 ✭✭

    Thank you for your response. I tried to follow everything exactly with a new mini-model: Here is my Jupyter Notebook code, which I save as a .pkl file in the "Models" folder.

    import pickle

    # Einfache Modellklasse
    class SimpleModel:
    def predict(self, input_value):
    # Überprüfen, ob die Eingabe eine Zahl ist
    if not isinstance(input_value, (int, float)):
    return {"error": "Input must be a number"}

    # Beispiel-Vorhersage: Multipliziere den Eingabewert mit 2
    result = input_value * 2
    return {"prediction": result}

    # Modell instanziieren
    model = SimpleModel()

    # Dataiku-spezifische Speicherung
    import dataiku
    folder_name = "Models" # Name des Managed Folders in Dataiku
    managed_folder = dataiku.Folder(folder_name)

    # Pipeline-Modell als Pickle speichern
    with managed_folder.get_writer("simple_model.pkl") as writer:
    pickle.dump(model, writer)

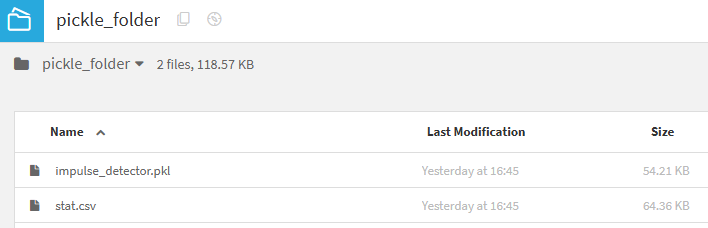

    Here ist my Folder "Models " with the pkl file:

    Here ist my Code in Api

    Here the Code under Settings Section

    import pickle
    import dataiku
    import os.path

    folder_path = folders[0]
    file_path = os.path.join(folder_path, "simple_model.pkl")

    with open(file_path) as f:
    data = pickle.load(f)

    def predict(myparam):
    return data.predict(myparam)

    Here my Test Query

    {
    "myparam": 10
    }

    When i run the test query i become this Error:

    Dev server deployment

    FAILED

    Failed to initiate function server : <class 'UnicodeDecodeError'> : utf-8

    [2025/01/23-15:49:43.889] [qtp284427775-40] [ERROR] [dku.lambda.api] - API call '/admin/api/services/notebookSkript/actions/switchToNewest' failedcom.dataiku.dip.io.SocketBlockLinkKernelException: Failed to initiate function server : <class 'UnicodeDecodeError'> : utf-8 at com.dataiku.dip.io.SocketBlockLinkInteraction.throwExceptionFromPython(SocketBlockLinkInteraction.java:302) at com.dataiku.dip.io.SocketBlockLinkInteraction$AsyncResult.checkException(SocketBlockLinkInteraction.java:215) at com.dataiku.dip.io.SocketBlockLinkInteraction$AsyncResult.get(SocketBlockLinkInteraction.java:190) at com.dataiku.dip.io.ResponderKernelLink$1.call(ResponderKernelLink.java:120) at com.dataiku.dip.io.ResponderKernelLink.execute(ResponderKernelLink.java:83) at com.dataiku.lambda.endpoints.pyfunction.PyFunctionPipeline.<init>(PyFunctionPipeline.java:51) at com.dataiku.lambda.endpoints.pyfunction.PyFunctionEndpointHandler.instantiatePipeline(PyFunctionEndpointHandler.java:55) at com.dataiku.lambda.endpoints.pyfunction.PyFunctionEndpointHandler.instantiatePipeline(PyFunctionEndpointHandler.java:25) at com.dataiku.lambda.endpoints.pool.PipelinePool.acquire(PipelinePool.java:168) at com.dataiku.lambda.endpoints.pool.PipelinePool.init(PipelinePool.java:67) at com.dataiku.lambda.endpoints.pyfunction.PyFunctionEndpointHandler.init(PyFunctionEndpointHandler.java:50) at com.dataiku.lambda.services.ServiceManager.mount(ServiceManager.java:350) at com.dataiku.lambda.services.ServiceManager.mountIfNeeded(ServiceManager.java:397) at com.dataiku.lambda.services.ServicesService.setMapping(ServicesService.java:286) at com.dataiku.lambda.services.ServicesService.switchToSingleGeneration(ServicesService.java:332) at com.dataiku.lambda.services.ServicesService.switchToNewestGeneration(ServicesService.java:314) at com.dataiku.lambda.admin.ServicesAdminController.switchToNewest(ServicesAdminController.java:211) at com.dataiku.lambda.admin.ServicesAdminController$$FastClassBySpringCGLIB$$3c7950d9.invoke(<generated>) at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218) at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:792) at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163) at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:762) at org.springframework.aop.aspectj.MethodInvocationProceedingJoinPoint.proceed(MethodInvocationProceedingJoinPoint.java:89) at com.dataiku.lambda.LambdaCallTracingAspect.doCall(LambdaCallTracingAspect.java:88) at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method) at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77) at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) at java.base/java.lang.reflect.Method.invoke(Method.java:569) at org.springframework.aop.aspectj.AbstractAspectJAdvice.invokeAdviceMethodWithGivenArgs(AbstractAspectJAdvice.java:634) at org.springframework.aop.aspectj.AbstractAspectJAdvice.invokeAdviceMethod(AbstractAspectJAdvice.java:624) at org.springframework.aop.aspectj.AspectJAroundAdvice.invoke(AspectJAroundAdvice.java:72) at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:175) at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:762) at org.springframework.aop.interceptor.ExposeInvocationInterceptor.invoke(ExposeInvocationInterceptor.java:97) at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186) at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:762) at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:707) at com.dataiku.lambda.admin.ServicesAdminController$$EnhancerBySpringCGLIB$$2e7ab96f.switchToNewest(<generated>) at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method) at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77) at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) at java.base/java.lang.reflect.Method.invoke(Method.java:569) at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:205) at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:150) at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:117) at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:903) at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:809) at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87) at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1072) at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:965) at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006) at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:909) at javax.servlet.http.HttpServlet.service(HttpServlet.java:523) at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883) at javax.servlet.http.HttpServlet.service(HttpServlet.java:590) at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:764) at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:529) at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:221) at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1384) at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:176) at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:484) at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:174) at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1306) at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:129) at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:122) at org.eclipse.jetty.server.Server.handle(Server.java:563) at org.eclipse.jetty.server.HttpChannel$RequestDispatchable.dispatch(HttpChannel.java:1598) at org.eclipse.jetty.server.HttpChannel.dispatch(HttpChannel.java:753) at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:501) at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:287) at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:314) at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:100) at org.eclipse.jetty.io.SelectableChannelEndPoint$1.run(SelectableChannelEndPoint.java:53) at org.eclipse.jetty.util.thread.strategy.AdaptiveExecutionStrategy.runTask(AdaptiveExecutionStrategy.java:421) at org.eclipse.jetty.util.thread.strategy.AdaptiveExecutionStrategy.consumeTask(AdaptiveExecutionStrategy.java:390) at org.eclipse.jetty.util.thread.strategy.AdaptiveExecutionStrategy.tryProduce(AdaptiveExecutionStrategy.java:277) at org.eclipse.jetty.util.thread.strategy.AdaptiveExecutionStrategy.run(AdaptiveExecutionStrategy.java:199) at org.eclipse.jetty.util.thread.ReservedThreadExecutor$ReservedThread.run(ReservedThreadExecutor.java:411) at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:969) at org.eclipse.jetty.util.thread.QueuedThreadPool$Runner.doRunJob(QueuedThreadPool.java:1194) at org.eclipse.jetty.util.thread.QueuedThreadPool$Runner.run(QueuedThreadPool.java:1149) at java.base/java.lang.Thread.run(Thread.java:840)

    Sorry to ask you again, but I'm really starting to feel desperate 😣
