Heatmap color is not aligned with the setting

shuting

I would like to create a heatmap (RdtoGrn) for our analysis, and embed the iframe via dashboard link in the Webap. However, the heatmap in the dashboard is not same as insight. Please provide better solution. Thanks.

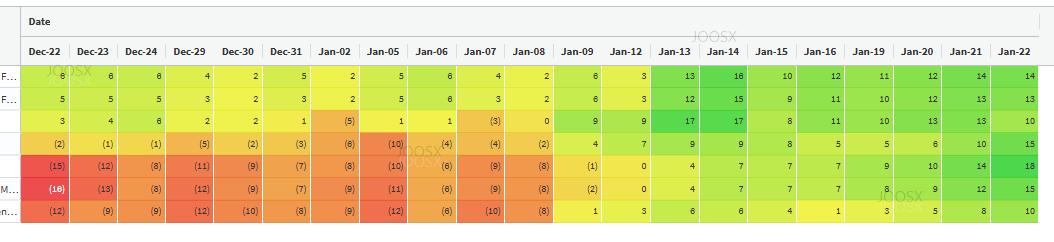

On the insight

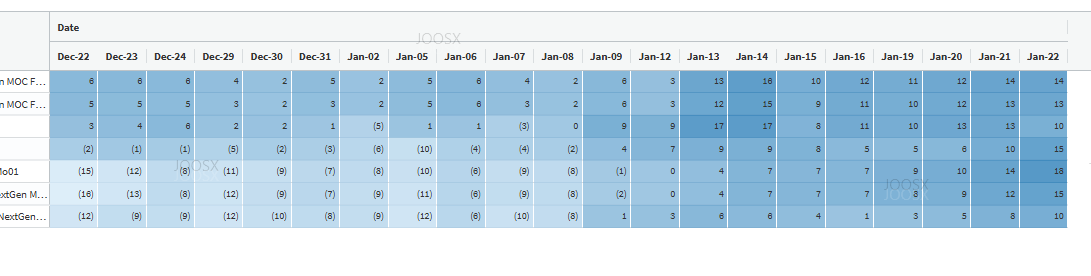

On the dashboard

Below is my embed iframe script:

    dashboard_url1 = "https://dss-2ba2cfdb-5149658e-dku.ap-southeast-1.app.dataiku.io/projects/xxx/dashboards/Jgoadmx_Price%20Correlation%20Model/view/oMwu4jI?fullScreen=true"

#dashboard_url1 = "https://dss-2ba2cfdb-5149658e-dku.ap-southeast-1.app.dataiku.io/projects/xxx/dashboards/insights/u2E7qcr_price-correlation-model-1/view?fullScreen=true"

    iframe_html = f"""<iframe width="1700" height="950" src={dashboard_url1} frameborder="0" allowFullScreen="true"></iframe>"""    st.markdown(iframe_html, unsafe_allow_html=True)

Dataiku version used: Version: 14.3.2

Dataiku version used: Version: 14.3.2

Dataiku version used: Version: 14.3.2

Grace_Y

Hello,

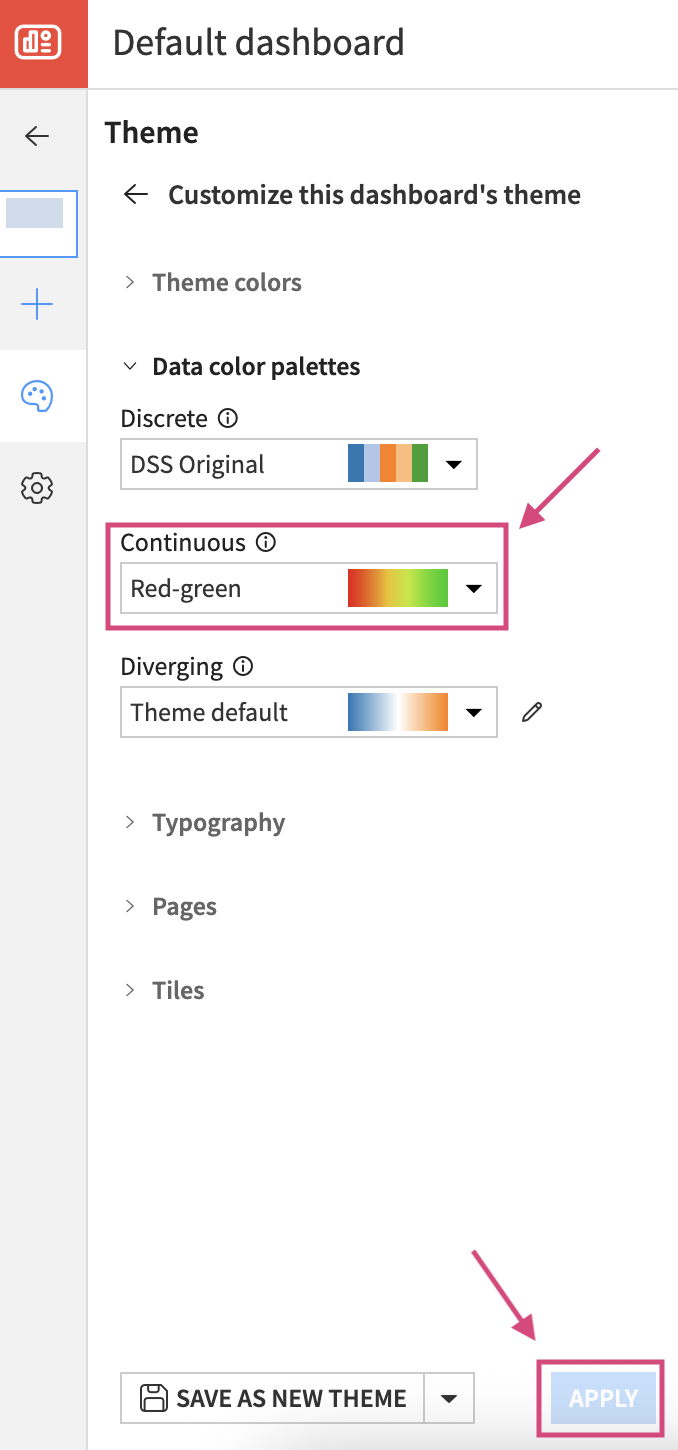

Please try the following:

1. Navigate to your dashboard
2. Click Theme in the left sidebar
3. Under Data color palettes, select red-green
4. Click Apply to save your changes

shuting

Problem solved. Thank you
