USE OF MOCODO WITHIN DATAIKU

jnourry

Hello, As a data steward I setup Entity-Relationship Model (MCD in french). I use MOCODO tool for that concern. I record my Mocodo script in a Jupyter Notebook within Dataiku.

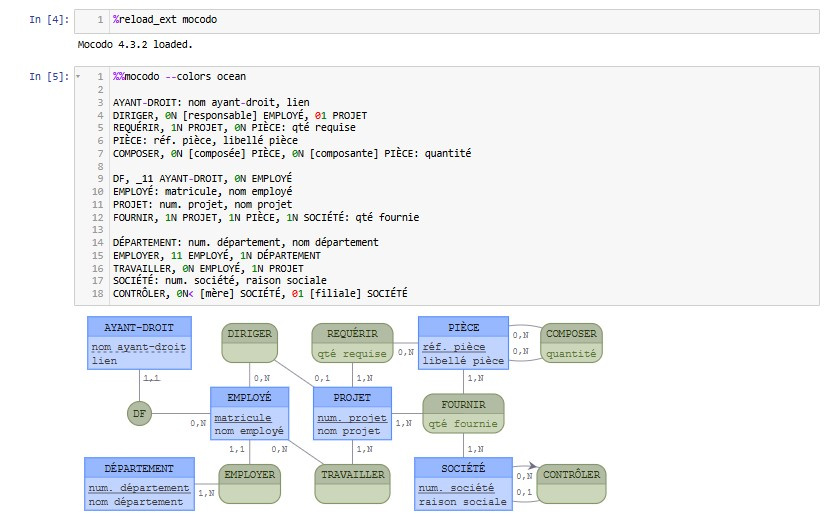

i get an svg picture with my ERM (see the file here attached).

I would like to get and save this picture in a pdf or png form.

Could someone support me?

jnourry

dataiku version used 14.1.1

Alexandru

Hi,

The image you see should be saved in the current working directory with something like mcd.svg
If you run !ls -ltr are you able to see the svg file ?

You ma be able to specific the files > mocodo --svg-to --output=MyERD.svg

https://rawgit.com/laowantong/mocodo/master/doc/fr_refman.html

If you know the name of the file, you can convert it to PDF using the cairosvg package.

Later, you can upload this file to a managed folder or final storage location, as the notebook's current working directory is typically ephemeral, especially when running in a Container.

https://doc.dataiku.com/dss/latest/connecting/managed_folders.html

Kind Regards
